Dispatch Side Doors Access Gyratory screener For Refractory Material
This 3 sets MHG model screener with normal carbon steel structure, with 4 layer deck, each layer deck consist 6 pieces of little deck panel.
The 3 sets screener are teh same model and for one same customer for refractory material screening in one Steel&Iron group.
screener for Refractory material

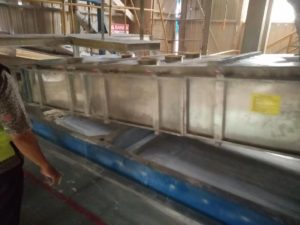

MHG side doors access screener for salt screening at site
This set screener model is MHG-TD30R screener, side doors access model, for one salt factory screening in Indonesia.
As we know, the salt with strong erosion features and sticky features, if with high moisture, the salt is easy to block the mesh aperture, even with the brush or cleaning ball and other self-cleaning method.
So it is necessary to clean the mesh surface by hand if the blockage problem happen, and our MHG model screener, it is easy to move out the mesh and put the mesh back again, two labor could finish the mesh changing and cleaning work within severial mins.
And the screener in photo is working well at site for salt screening .
Ammonium Sulfate Screening Site
This MHG model screener set up in one big fertilizer factory in China. And our MHG model screener in one ammonium sulfate production line.
In the past severial years, the factory adopt drum screener for the ammonium sulfate material screening, but they meet one big trouble with the drum screener, it always block the mesh aperture, and it is very hard to clean it. Because the ammonium sulfate material is with sticky. And they need speed severial days for the drum screener mesh cleaning every month. It waste many time and affect the production output.
So we recommed our MH model screener and MHG model screener at the same time, at last, we install the MHG side doors access gyratory screener at site to replace that old drum screener, after about 1 years operation, they are very satisfied on the MHG screener performance.
First, MHG screener increase the capacity 50% at least compare the drum screener, drum screener only meet 40TPH, but our MHG could meet 60-80TPH.
Second, reduce the maintenance time, for MHG screener, two people could finish the mesh changing within 30 mins, but for drum screener, it need 6 people spend 2 days each time.
Third, because the MHG screener with self-cleaning balls, so the screening precision increased.
