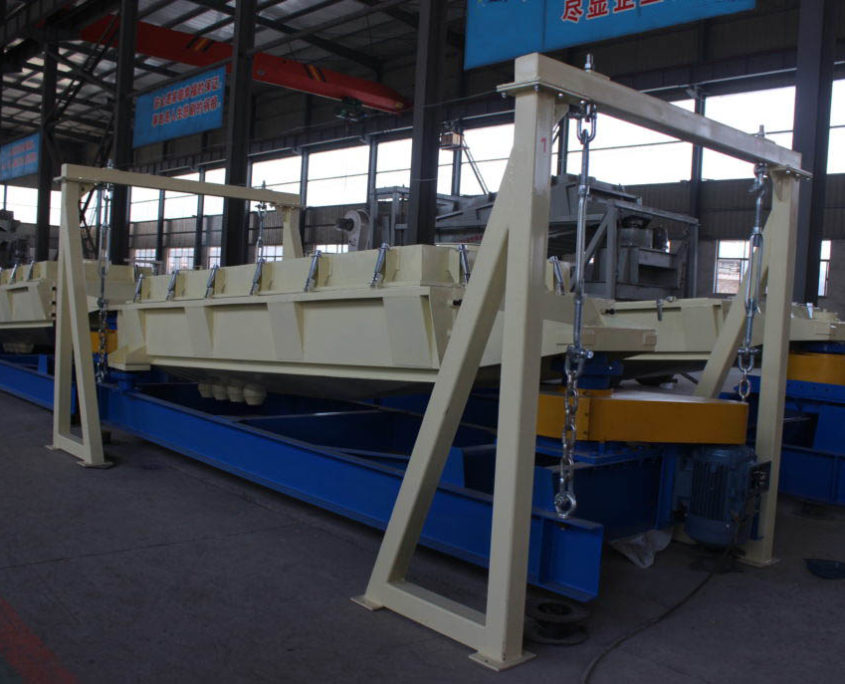

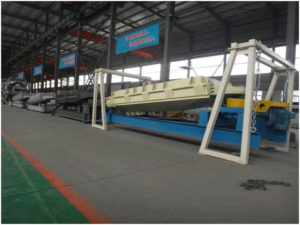

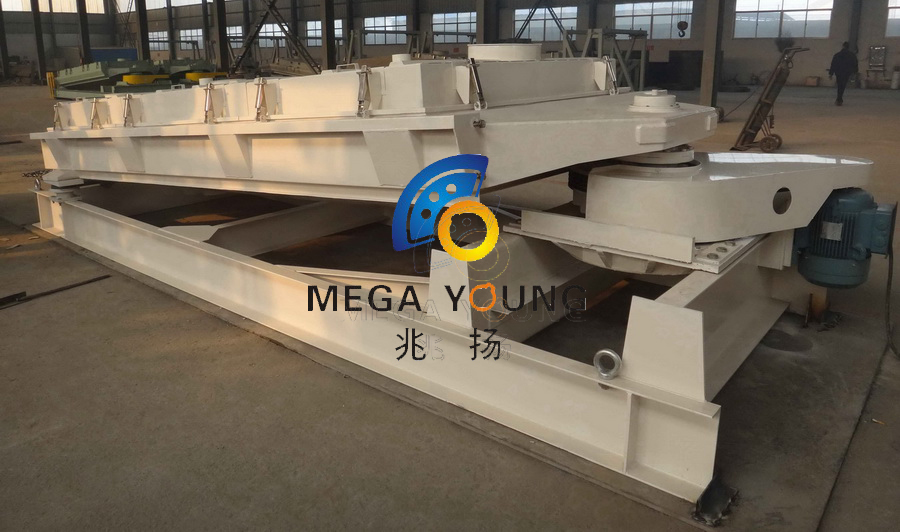

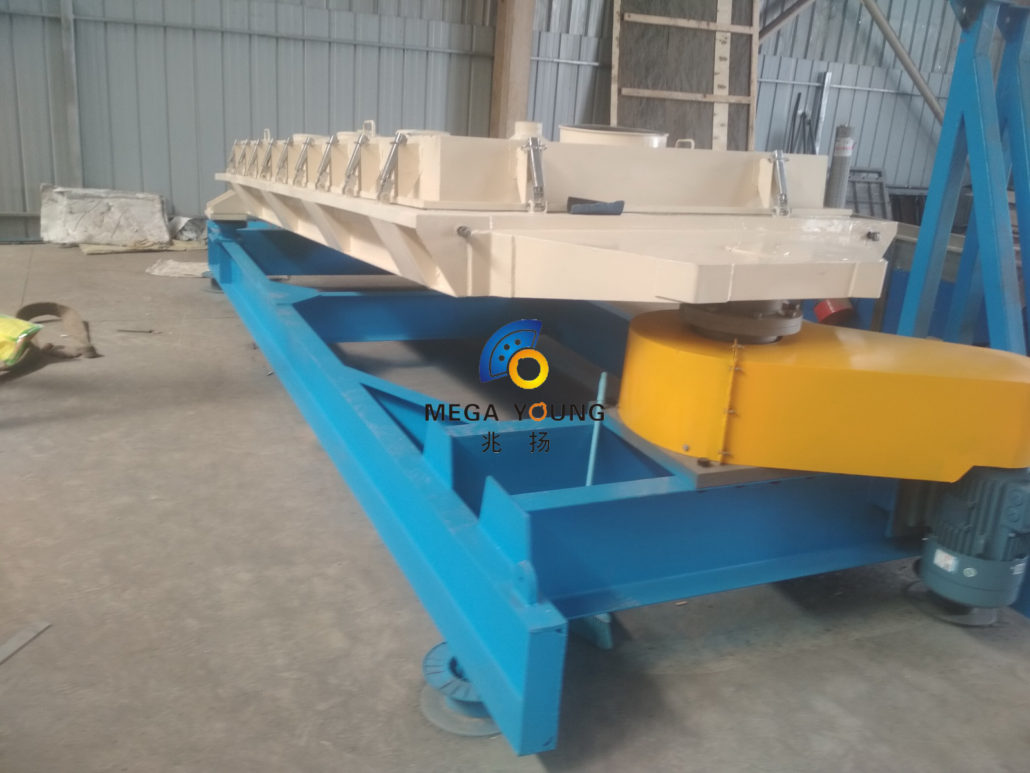

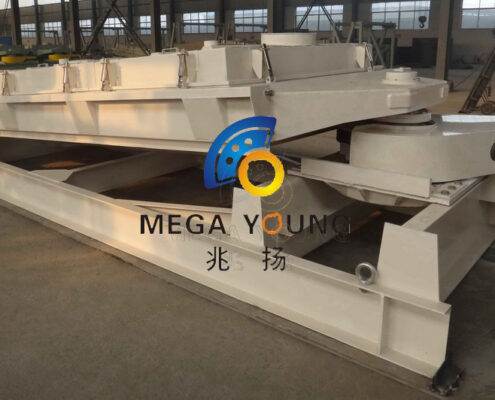

M Series Gyratory Sifter

This model gyratory sifter is the best seller production of Mega Young Screening Technology Co.,Ltd, compare with other sifting equipment models, the gyratory sifter sales amount is largest, and the performance and influence of the gyratory sifter have been proven by different customer in different industry applications.

The M series gyratory vibrating sifter could spreads the material across the full width of the screen surface, the material flow thickness will be thiner than other sifting equipment. The material will be easy to be sifting becasuse thiner the flow bed.

The gyratory sifter work priciple as following:

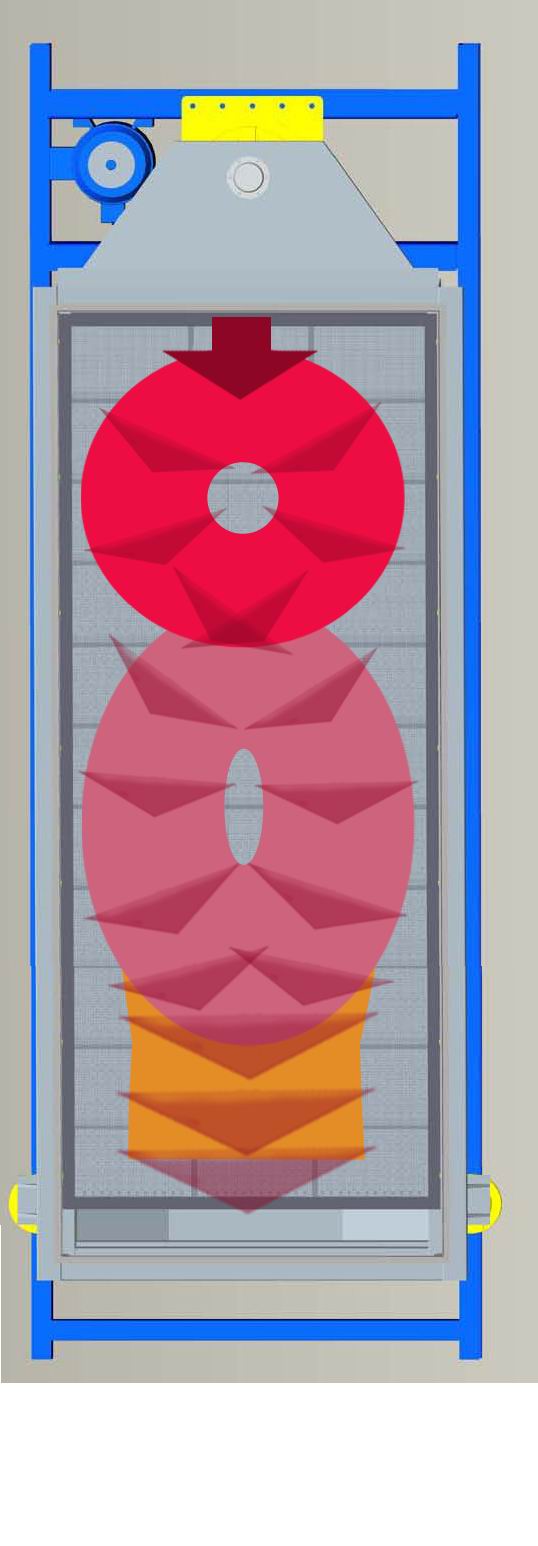

1. The materials do the reciprocating-gyratory motion along with the gyratory sifter running, and there is not vertical jump during the gyratory screen running period, the little size material will go to the bottom of the flow bed along moving forward, the material particle will pass the mesh aperture when the particle size is less than the gyratory separator aperture size. The reciprocating gyratory motion will make the material flow bed touch the screener mesh surface with longer time for increasing the screening efficiency.
2.The reciprocating gyratory motion of the gyratory sifter will spread the material flow bed evenly along with the screener mesh bed after material fall into the inlet, the material flow bed will be very thin after being spread, it is good for material screening , and the material screening precision and capacity will be increased.

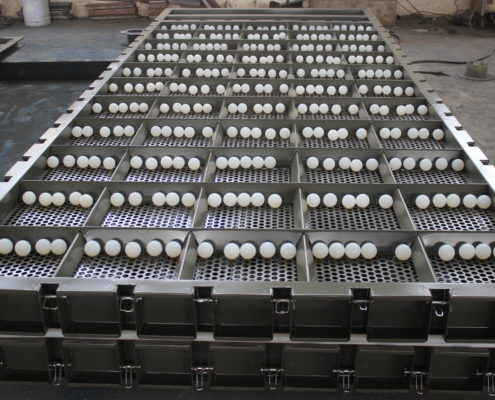

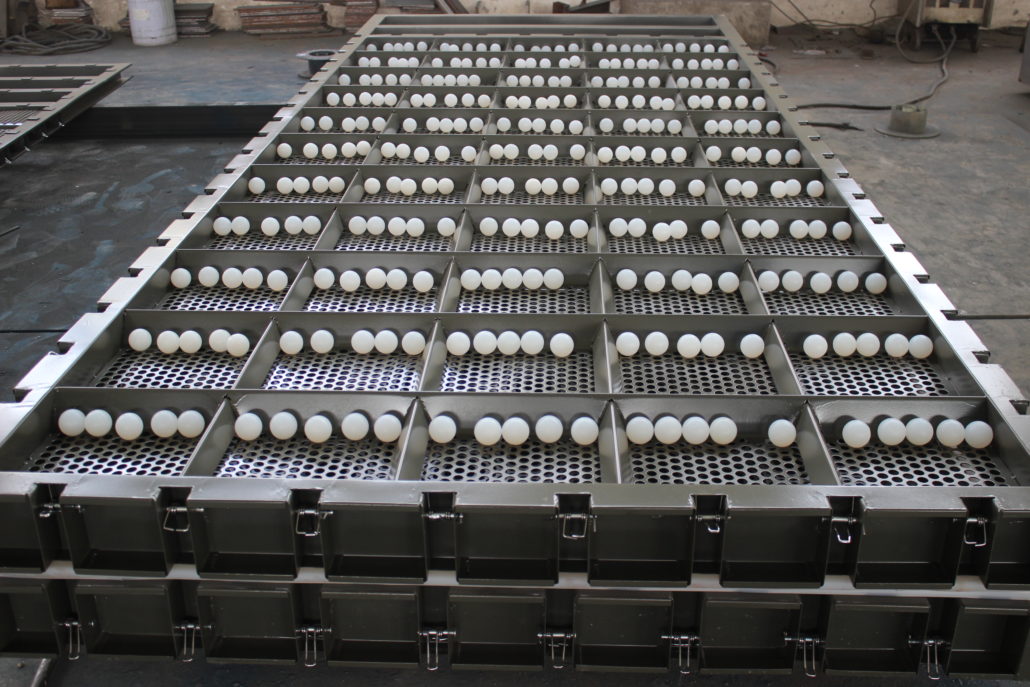

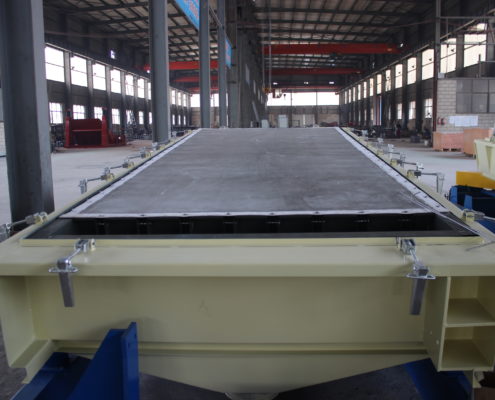

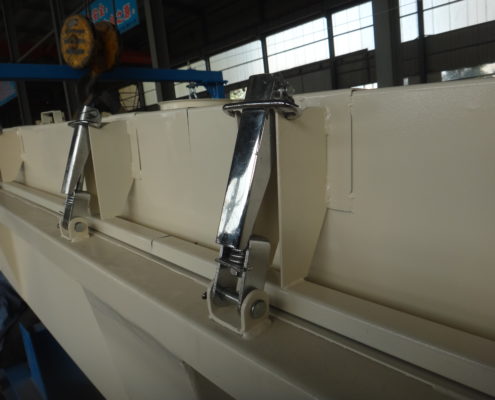

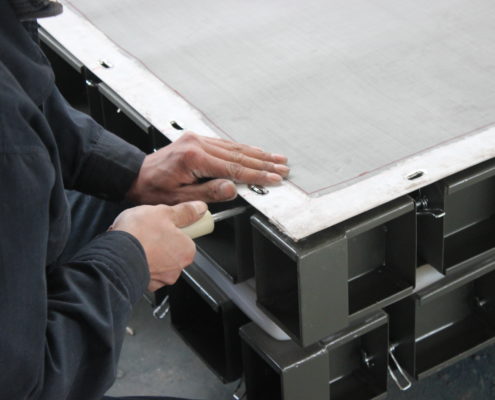

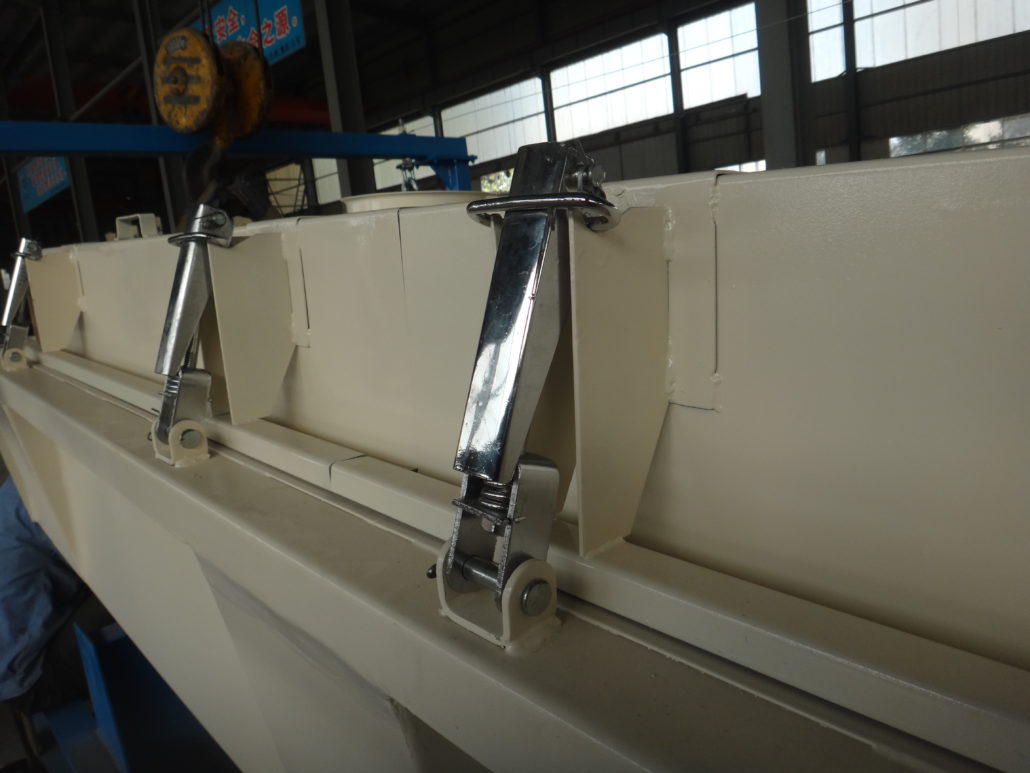

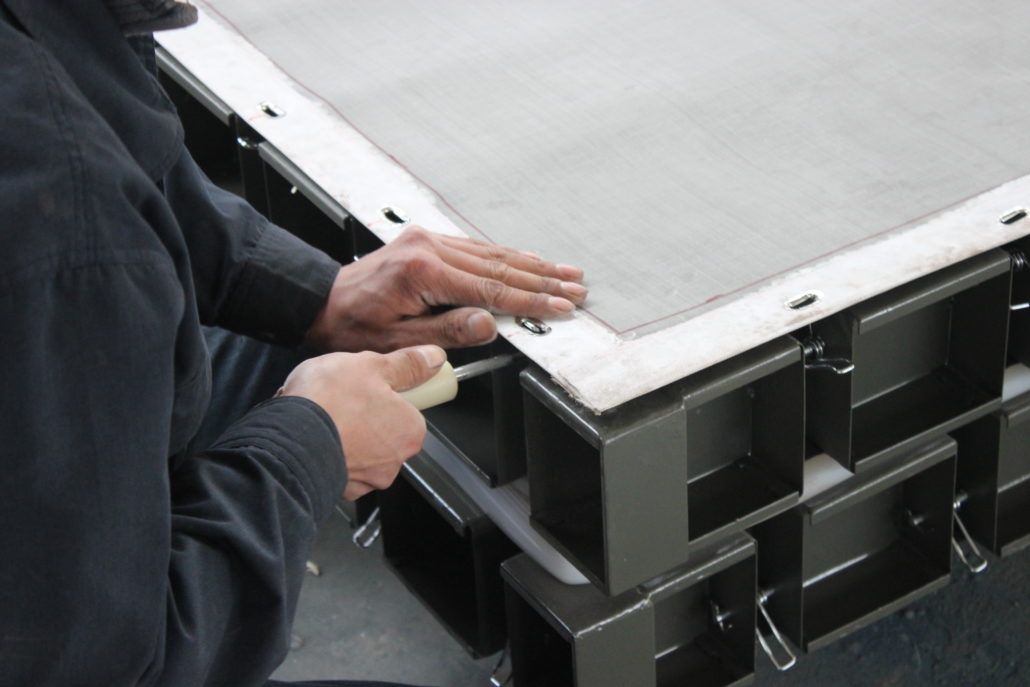

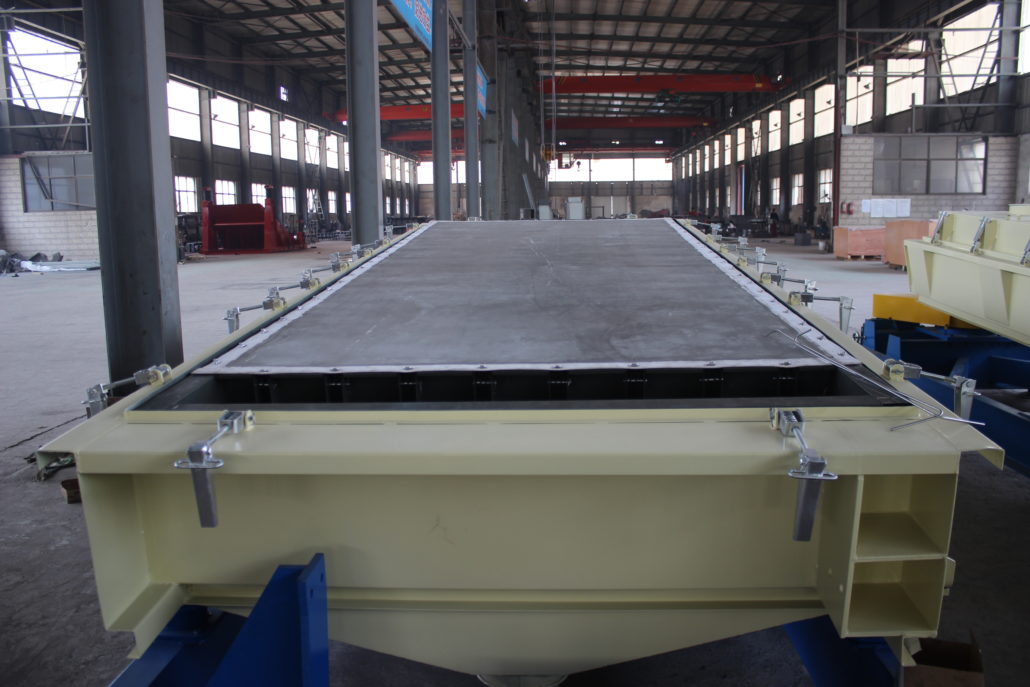

3.The screen deck of gyratory sifter equipment consist of mesh, spring clamp, ball trays and self-cleaning balls. The self-cleaning balls jump ceaselessly along with gyratory screener operation, the ball could hit the screen mesh in order to let the mesh vibration, so the material blocked in the mesh aperture or adhered to the mesh surface will be cleaned out, it could make sure the aperture ratio so guarantee the screening efficiency.
4.The gyratory sifter do not have vertical vibration, so it do not have much load request on the base foundation, it is much lower than the vibration model screener, so the gyratory screener could save steel structure cost, the customer do not need to consider the install load limited.
